MerantiShorea
Open, straight to slightly interlocked grain; light pinkish-red to deep reddish-brown.
Engineered Timber
Glue Laminated Timber
Engineered timber components prepared for architectural joinery, window scantlings, and considered project requirements.
Request Material ConsultationGlue laminated timber manufactured from selected Meranti and Nyatoh for project specifications.
Meranti·Nyatoh
Species Profile
Hardwood character within an engineered form.
Meranti and Nyatoh bring distinct Southeast Asian grain and colour characteristics to glue-laminated timber sections.
Species
Grain & Appearance
NyatohPalaquium / Payena
Fine to medium texture with a straight grain and warm reddish-brown character resembling Walnut or Mahogany.
Engineering & Manufacturing
Performance through considered lamination.
Stress grading, adhesive selection, and finger-jointed preparation support consistent engineered timber sections.
01
Enhanced Dimensional Stability
Laminated construction distributes internal stresses to help limit twisting, warping, and splitting as moisture conditions change.
02
Structural Adhesive Selection
Structural glulam may use polyurethane (PUR) or phenol-resorcinol-formaldehyde (PRF) systems selected for weather resistance and load-bearing requirements.
03
Finger-Jointing Efficiency
Finger-jointing connects shorter boards before lamination, enabling longer sections while improving timber yield and reducing material waste.
Product Specifications

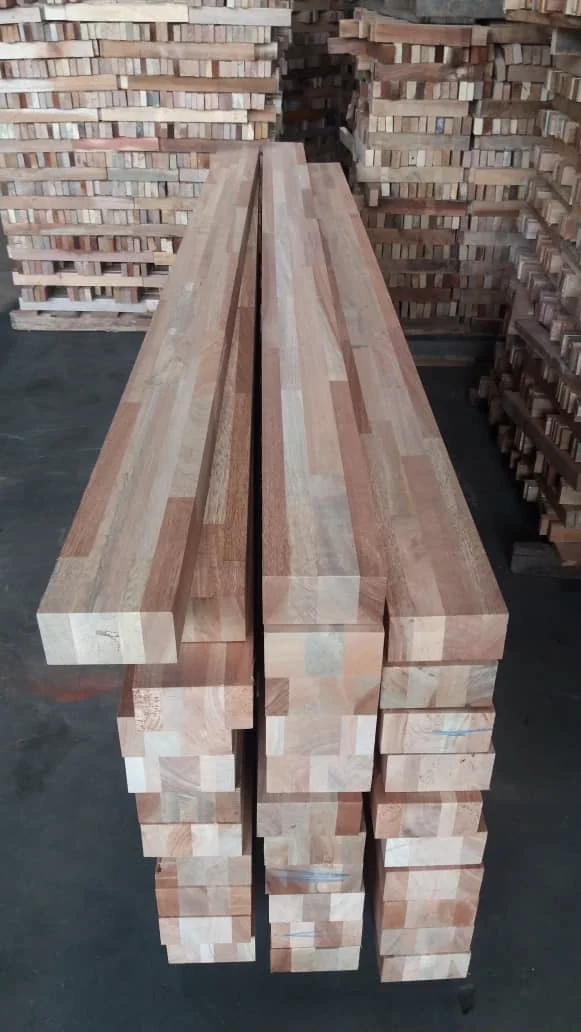

Glue Laminated Timber for Window Scantlings
Prepared in extended lengths and multiple section widths for window scantling and joinery requirements.
Dimensions
- 72 mm thickness x 86/115/145 mm width x 6000 mm length
- 84 mm thickness x 86/115/145 mm width x 6000 mm length
- 96 mm thickness x 86/115/145 mm width x 6000 mm length
Wood Species
Meranti / Nyatoh
Malaysia & Asia Supply
Asia Project EnquiriesGlue laminated wood boards for Malaysia and Asian projects.
Imperium Materials manufactures glue laminated wood boards, also described as glue laminated timber sections, in Malaysia for window scantlings, joinery, and export-ready project enquiries across Asia.
Malaysia Manufacturing
Meranti and Nyatoh laminations are prepared with stress grading, finger-jointing, and structural adhesive selection for the intended application.
Project Dimensions
Current sections are available in 72 mm, 84 mm, and 96 mm thicknesses with multiple widths and lengths up to 6000 mm.
Export-Ready Enquiries
Asian project requirements can be reviewed against species, section size, quantity, destination, documentation needs, and project timeline.
Material Consultation
Discuss glue laminated timber for your project.
Send us your project details, preferred material direction, and application requirements so we can help with a suitable quotation.
Residential · Hospitality · Commercial · Architectural
Malaysia and international project enquiries
